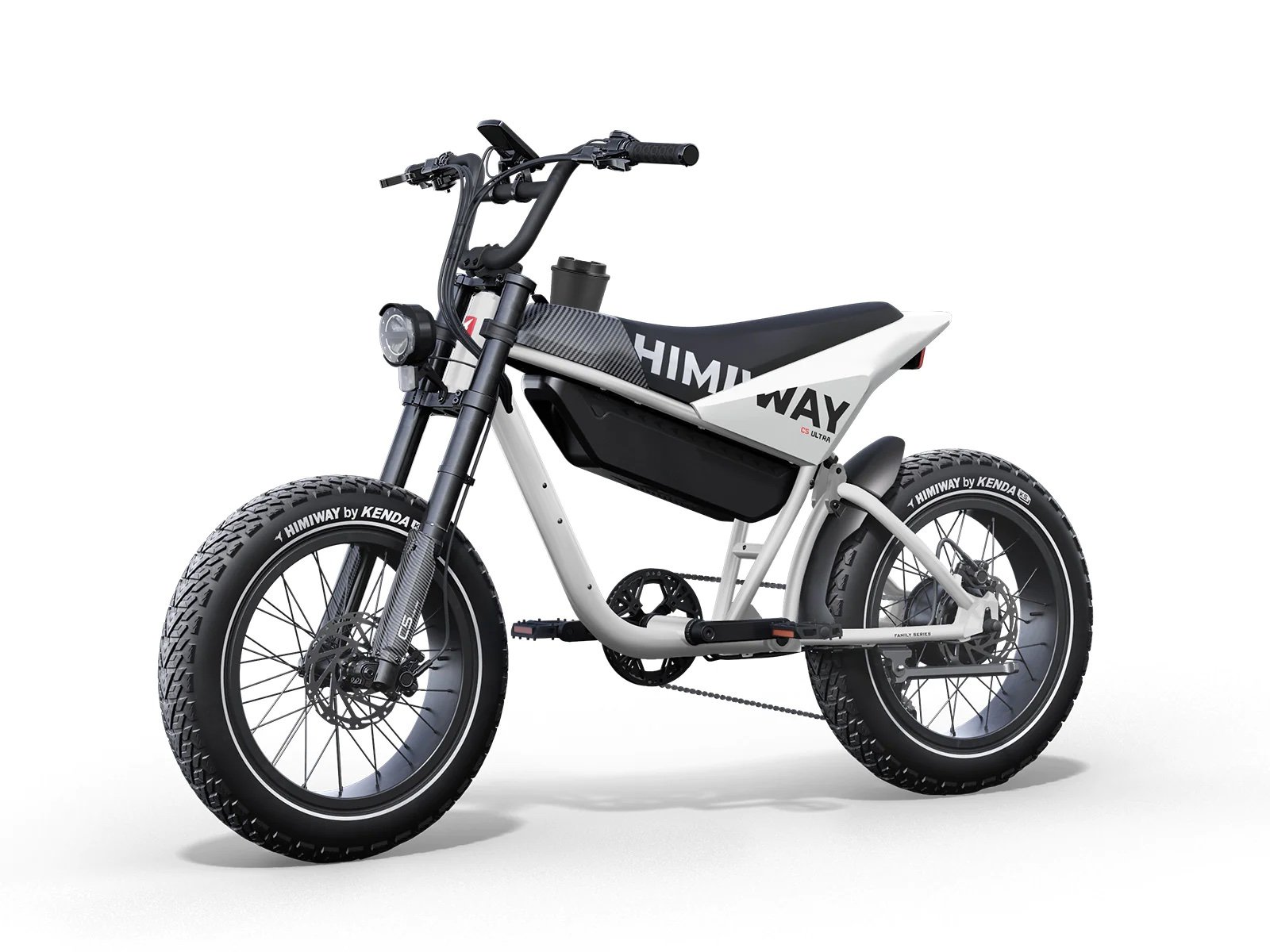

Himiway Electric Motorbike C5 Ultra - White, Ink Grey

“For creative professionals and bike enthusiasts (and everyone in between), the electric Himiway C5 bike invites you to hop on, ditch conventions, and take control of your travel style.”

750W Brushless Geared Hub Motor

Experience superior performance with the Himiway C5's 750W motor, delivering an impressive 86Nm of torque for effortless climbs up 15° inclines and smooth rides against the wind.

• 750W

  Motor Power

• 86Nm

  Max Motor Torque

960Wh

48V 20Ah

Breathing

Light

Equipped with a powerful LG 48V 20Ah battery, the Himiway C5 delivers an impressive 80-mile range per charge. Experience the thrill of the ride, conquer city streets, and embrace endless exploration.

• 80 %

  Capacity after 1000 charges

• 20 %

  Increased range

750W Brushless Geared Hub Motor

Experience superior performance with the Himiway C5's 750W motor, delivering an impressive 86Nm of torque for effortless climbs up 15° inclines and smooth rides against the wind.

• 750W

  Motor Power

• 86Nm

  Max Motor Torque

Double the Frame Thickness, Double the Payload Capacity

Aerospace-grade

Aluminum Frame

Full

Suspension

Crafted from 6061 aluminum alloy, our frames combine lightweight resilience with exceptional durability. Resistant to corrosion, they guarantee enduring performance across any terrain

• 330 lbs

  Payload Capacity

• 88 lb.

  Weight (with battery)

Specs

A – total length

70.8

• B – handlebar height

  48.8

• C – handlebar length

  29.1

• D – wheelbase

  47

• E – wheel diameter

  23.3

• F – minimum seat height

  33

• G – maximum seat height

  33

• H – chain stay length

  22.5

• I – frame stack

  31.9

• K – effective top tube length

  29.4

• L – head tube length

  6.7

• N – standover height

  31.8

• Frame

  6061 Aluminum frame

• Headset

  Neco H114 28.6*44*30

• Fork

  KKE R150S coil spring fork compression | Rebound adjustable 140mm travel 15*150mm axle

• Shock

  EXA A5-RE 180*47mm

• Front wheel

  "Rim: MD-147 20*4.0""*36H*12G A/V | Spoke: 12G 171mm/173mm | Hub: MB016F-92-T 15*135MM 12G*36H"

• Rear wheel

  Rim: MD-147 20*4.0""*36H*12G A/V | Spoke: 12G 126mm/127mm Hub: 48v 750w | Himiway Hub Motor

• Tires

  Kenda X Himiway 20*4.0

• Battery

  Samsung/LG 48V 20Ah

• Motor

  750W brushless gear motor

• Display

  Himiway C2 LCD Display

• Throttle

  Thumb throttle

• Sensors

  Torque sensor丨speed sensor丨brake sensor

• Crankset

  44T BCD104 6061-T6 145mm

• Freewheel

  Shimano MF-TZ500-7 14-28T

• Chain

  KMC Z8.3 EPT 130L

• Groupset

  Shimano altus M310 7 speed

• Front brake

  Tektro HD-E3520 hydraulic brake

• Front brake

  Tektro HD-E3520 hydraulic brake

• Rotors

  Tektro TR180-52 F:180mm R:180mm

• Stem

  3D forged alloy Ext:40mm

• Handlebar

  YC-B086 22.2*31.8*720mm

• Seatpost

  /

• Saddle

  Extended seat

• Pedal

  Aluminum pedal

• Lights

  48V LED light

• Kickstand

  Heavy-duty aluminum kickstand

• Range

  60-80 miles

• Controller

  48V/22A

• Charger

  US standard 3.0 A smart charger

• Rider height

  5'4"~6'3"

• Weight

  88 lb.

• Max. system weight

  330 lb.
