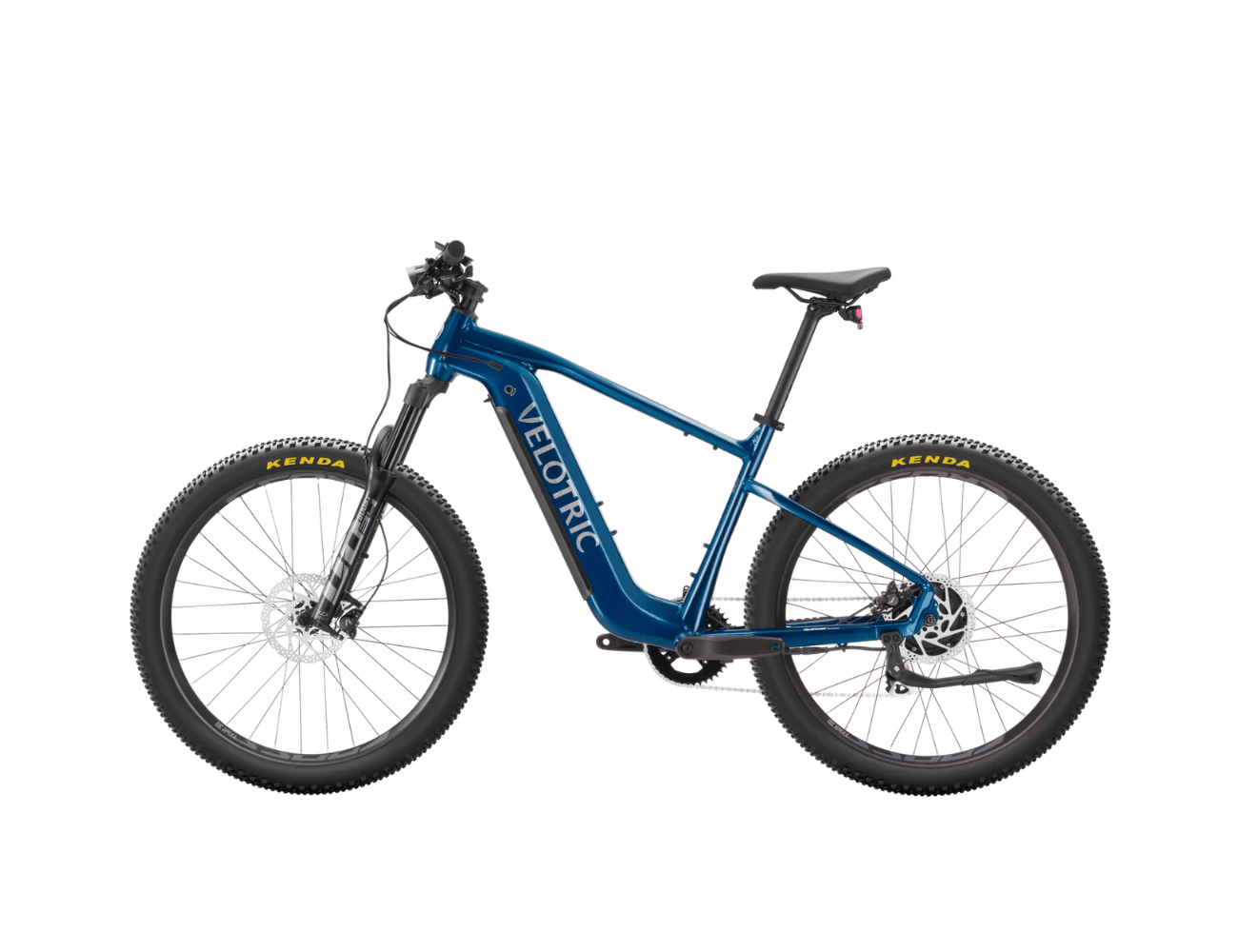

Velotric Summit 1 Ebike Royal Blue
MOTOR
750W/90Nm
TOP SPEED
28 MPH
Sensor Swap
Torque/Cadence
MAX RANGE
70 Miles
WATERPROOF
Battery IPX7
MODE
Customizable
1,000+ Bike Shops
Convenient, Professional Service
Safety Certified
In Accordance With UL 2849
ADVENTURE-READY POWER
The Velotric Summit 1 boasts a powerful 750Wmotor with a hefty 90Nm of torque. This best-in-class power lets you glide up steep inclines and navigate challenging terrains with ease. With the intuitive throttle, you can effortlessly tap into this power, making your adventure not only manageable but truly exhilarating.
While the high-precision torque sensor ensures smooth acceleration and an intuitive start from 0 speed, perfect for varied terrain, the cadence sensor mode is available when you want to cruise at higher speeds more easily.
SEAMLESS HANDLING,
SUPERIOR COMFORT.
The Velotric Summit 1 features a balanced frame geometry that provides an ideal mix of handling and comfort, making it perfect for versatile riding adventures.
It's 120mm travel suspension masterfully absorbs the impacts and vibrations of rough terrain, delivering a ride that's both smoother and impeccably controlled.
Additionally, the sport saddle of the Summit 1 is crafted to minimize fatigue
Additionally, the sport saddle of the Summit 1 is crafted to minimize hip fatigue during long rides, enhancing your overall experience so you can stay in the saddle longer with greater comfort.
GEAR UP FOR ANYWHERE
The Velotric Summit 1 offers an array of customizable accessories, including rear rack, fenders, suspension seat post, water bottle holder and more, which can be purchased separately. Ready to adapt at a moment's notice, the Summit 1 effortlessly converts into a trekking bike, setting the stage for thrilling rides and memorable adventures.
CYCLE SMARTER
Use the Velotric app to monitor your mileage, access real-time bike data, trace detailed ride paths, and conduct health checks via Apple Health. Enjoy seamless OTA updates for your bike's firmware and utilize Apple Find My for pinpoint location tracking.
Experience clarity with a vibrant 2.8" TFT color display—
a multifunctional screen designed for visibility and ease. Effortlessly switch between Class 1, 2, and 3
TECHNICAL SPECIFICATIONS
Size Guide
Bike Size
Regular/Large
User Height Range
Regular: 5'1" ~ 5'10"/Large: 5'8" ~ 6'6"
Frameset
Frame
Triple-Butted Aluminum Alloy
Fork
Hydraulic suspension 120mm travel with Lock-out, 15x110mm thru-axle
Electronics
Motor
48V, 750W, 90Nm
Battery
48V, 705.6Wh, IPX7, Certificated by UL 2271
Cell
Samsung/LG 21700 cell, Certificated by UL 2580
Charger
48V, 3A Fast Charger
Sensor
Torque sensor
Display
2.8" Full color, high brightness, Bluetooth, adjustable angle
USB Port
USB Type-A phone charge
Security
Apple Find My™
Throttle
Trigger-control, removable
Pedal Assist
3 Modes × 5 Levels
Walk Mode
2.9 MPH
Front Light
Light sensing 130Lux high-output integrated LED, adjustable angle
Rear Light
Brake highlight, rear light steady/flash
Water Resistant
IPX6
Speed & Range
Max Speed (Default)
20 MPH
Max Speed Adjustable Range
12~28 MPH
Class
1/2/3
Throttle Range
60 Miles
Pedal Assist Range
70 Miles
Drivetrain
Chainrings
BCD 104, 44T, narrow wide chainring
Crankset
Aluminum Alloy, 170mm
Cassette
8-speed
Rear Derailleur
SHIMANO 8-speed
Shift Lever
SHIMANO 8-speed
Chain
KMC 8-speed
Brake
Brake
SHIMANO Hydraulic Disc Brake
Rotors
180mm front and rear
Brake Levers
Aluminum Alloy, with power cutoff
Wheel
Rims
Double-wall Aluminum Alloy
Front Hub
NOVATEC Aluminum Alloy, 15x110mm thru-axle
Tire
Kenda 27.5x2.6" MTB puncture resistant tires
Cockpit
Handlebar
Aluminum Alloy, Φ31.8mm, 760mm (R)/780mm (L)
Grips
Velotric sports grips, lockable
Stem
Adjustable, Aluminum Alloy, φ31.8mm, 35mm (R)/50mm (L)
Saddle
VELOTRIC ergonomic seat
Seatpost
Aluminum Alloy, φ30.9mm, 350mm
Clamp
Aluminum Alloy, quick release
Supports
Fenders
Optional
Rear Rack
Optional
Pedals
Aluminum Alloy
Kickstand
Aluminum Alloy, included, rear mount
Weight & Load
Bike Weight
62lbs
Max Bike Load Capacity
440lbs
Certification
UL Certification
UL 2849
ISO Standard
ISO 4210
